Transmission Tunnel

I figured out what I don't like about MIG welding. It's not the darkness. I thought the trouble we had seeing the puddle was just a too-dark thing. But that's not it. It's the torch. It's too big. It gets in the way. You're constantly trying to look around it to see what's going on. Maybe we're holding the torch too close, but better too close than too far away. The shielding gas is the only thing keeping the welds from turning into salt-water taffy.

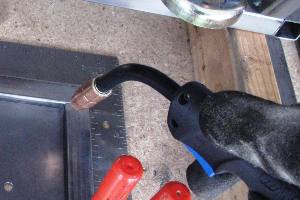

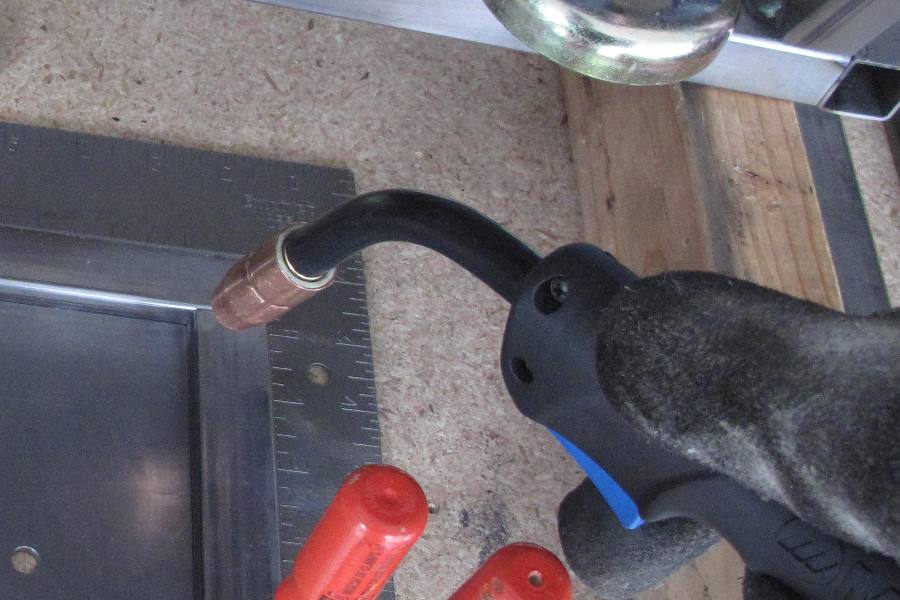

  Big fat torch gets in the way of everything
click to enlarge

Sometimes you can only see the puddle if you lean over and turn your head sideways. The problem with that is, you may not be looking through the clearest part of your glasses. If your lenses are progressive, only the bottom half of the lens is any good for close-up work. So you may have a little trouble focusing, and sometimes you'll see two sparks unless you close one eye. Our best welds are made when we're looking down at the joint, with the torch angled about 15 degrees away from the puddle, pushing the leading edge. We'd like to do all of our welds like that.

I miss gas welding. With a gas rig you can see everything. You could read a newspaper. The slim torch tip shoots out an even thinner blue flame, and the bright yellow puddle flows with a glossy sheen. It's fun. You can make a perfect bead, or at least you could if you were any good at it. You can make a bead with MIG, but the steady feed of the wire makes it hard to produce anything but a slug-like lump. TIG welding is similar to MIG, with a too-dark helmet and a large nozzle spraying argon over a wide area. But you do have control over the filler rod, so the beads look better.

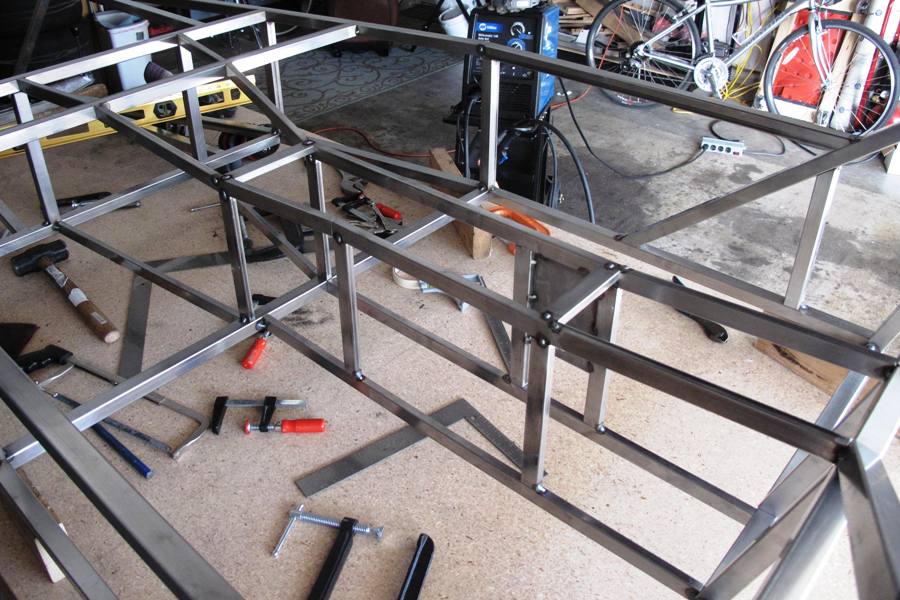

Combination transmission tunnel/arm rest
click to enlarge

The good news is, the transmission tunnel is done. This is a big milestone because when you're sitting in the frame daydreaming about racing down the Mulsanne straight, you need a place to rest your right arm. The tunnel makes the thing feel more like a real sports car, and I also believe that the taller the tunnel, the sportier the car. I like the look of the 1"x 1/2" tubing. It was definitely easier to align than 3/4" tubing, and it makes the tunnel stronger and slimmer at the same time. And who wouldn't like that?

  Transmission tunnel under construction
click to enlarge

When we fit the engine and transmission in the mock-up frame, we found the forward cross tube interfered with the transmission turret. The tunnel was too low. The mock-up frame has a 9-1/2" tall book tunnel, and I figured we'd needed another inch. So we gave it an inch and a half. Which makes the tunnel in the new frame 11" high, just 2" shorter than the sides of the car, which is excellent. There's plenty of extra space for not only the transmission, but also the drive shaft, differential, and cup holders. And it's just about the ideal height for an arm rest.

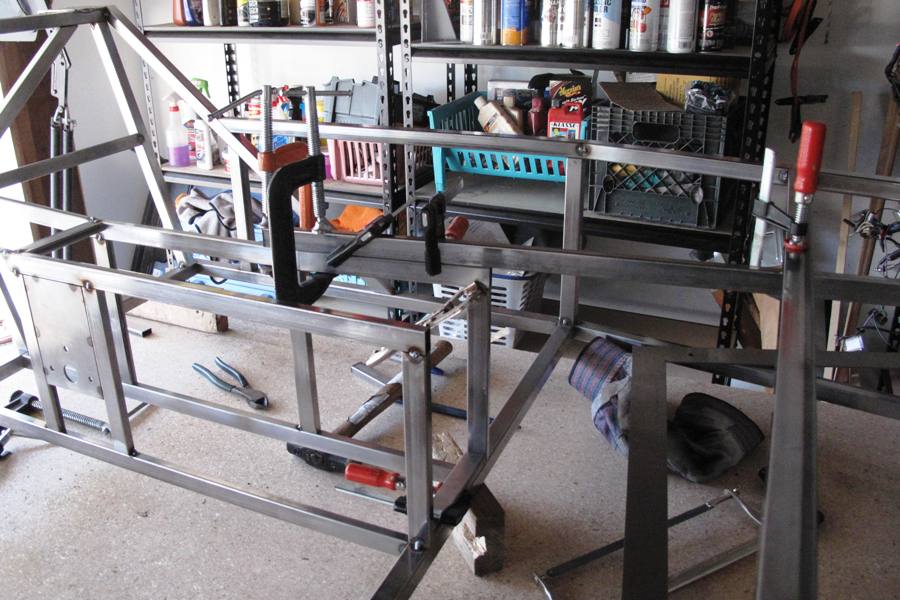

Makeshift tunnel jig
click to enlarge

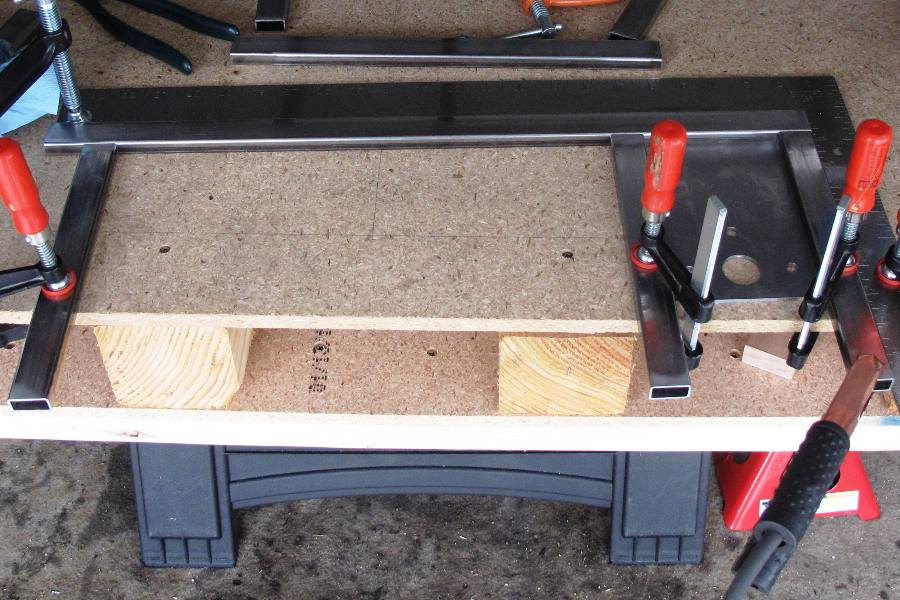

Cutting and fitting tubes for the tunnel looked like it was going to be tricky, but turned out to be relatively easy. The frame is accurate enough now to be used as a reference, and we were able to use clamps and spare tubes for makeshift jigs, so the tunnel came out pretty straight. We built the sides of the tunnel, including the handbrake mount, flat on the table so it would've been difficult for us to mess that part up. But not impossible, as I think we've demonstrated adequately in the past. Luckily we're only tack welding.

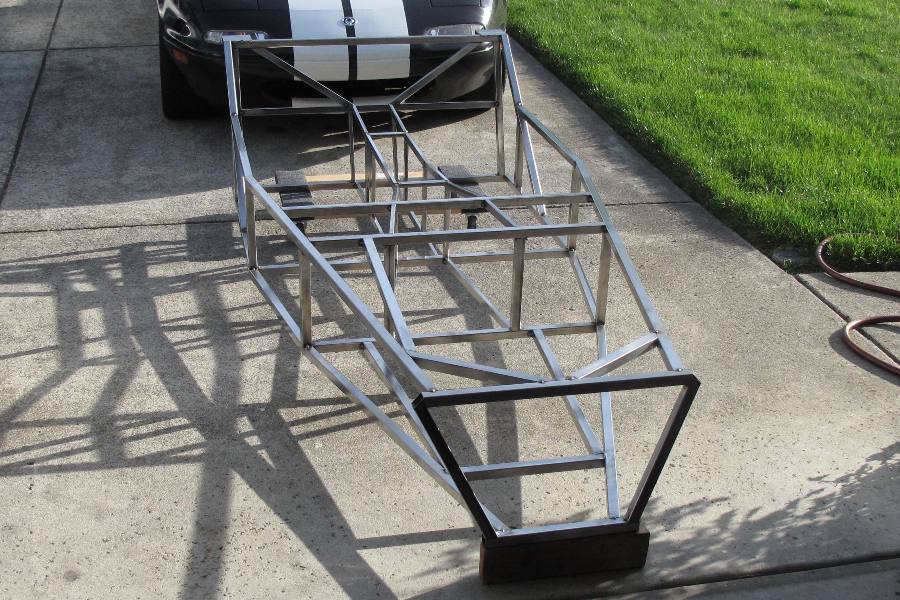

  The almost-completed frame catching a few rays
click to enlarge

With the sides clamped in place, it was a pretty simple matter to cut the rest of the tubes to fit. Just to be sure, before we welded anything in and after tacking on each section, we took cross measurements of the frame from the back end of each B-tube to the corner of the opposite forward H-tube. Measurements were 65-29/32" left-to-right, 65-29/32" right-to-left. And those numbers are pretty much locked in now that the tunnel is in place. All that's left to do on the frame is tack on the 4 or 5 tubes that hold up the rear body work. After that, we weld the whole thing together.
